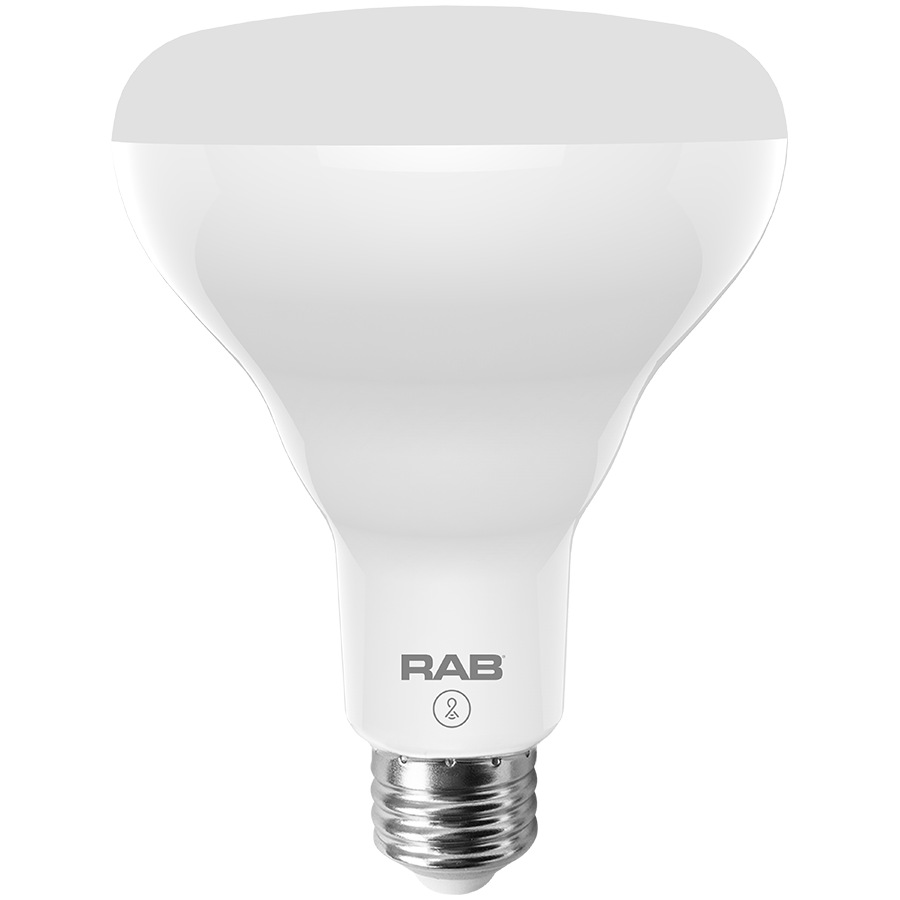

BR30-10-E26-9SS/LC

Spec Sheet Photometrics Report Energy Star Instructions Master Specification Features FCC Caution Spec Sheet

BR30-10-E26-9SS/LC

View Technical Specs

Performance

Watts	10W
Color Temp	2700K-6500K
Lumens	800 lm
Efficacy	80 lm/W
Color Accuracy	95 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120V
Power Factor	>0.9
Flicker	N/A
THDi	N/A
R9	90

Dimensions

Weight: 0.3 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More

Performance

Product Type

Reflector

Input Wattage

10W

Wattage Equivalency

65W Incandescent

Lumens

800lm

L70 Lifespan

25,000 Hours

Construction

Bulb Shape

BR30

Installation

Base Type

E26 Edison

Electrical

Power Factor

>0.9

Operating Temperature

-20°C to 40°C

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V

100mA

LED Characteristics

Beam Angle

120°

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

Damp Rated

Suitable for damp locations

UL Listed

Yes

Enclosed Fixtures

Suitable for use in enclosed fixtures

Energy Star Approved

This product is ENERGY STAR® Version 2.0 Certified

T20

Complies with CEC Title 20

T24 JA8 Compliant
