BD5-3/4 - RAB Lighting

BD5-3/4

Spec Sheet Spec Sheet

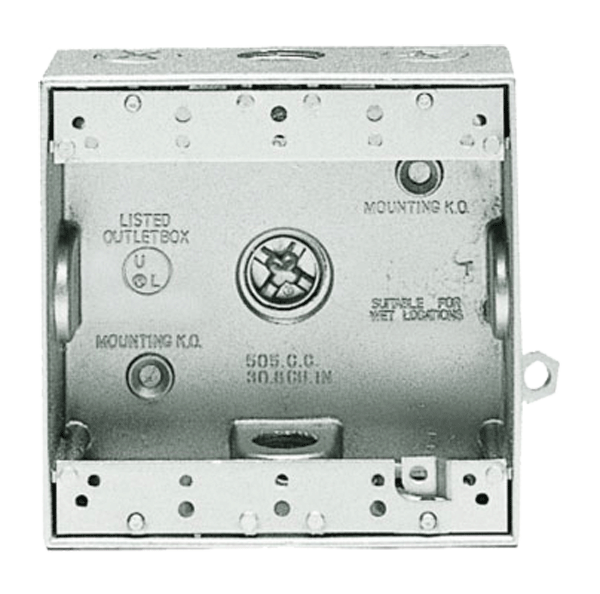

BD5-3/4 large main

BD5-3/4

Die cast aluminum

Two unique "Flexi-lugs" for wall or pole mounting

Ground screw and close-up plugs provided

View Technical Specs

View Price & Availability

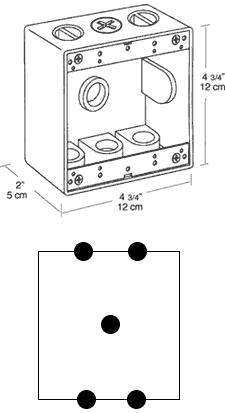

Dimensions

Link to Dimension Drawing

Weight: 1.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

Other

Outlet Box Construction

Precision die cast aluminum

Tap Size

3/4"

Installation

Outlet Box Mounting Lugs

16 gauge corrosion protected steel with Phillips Flat head mounting screws

Construction

Ground Screw

#10-24 Green corrosion protected steel slotted hex washer head screw provided in pre-tapped hole

Hole Count

5 Hole
