Performance
| Watts | 10W |
| Color Temp | 3000K |
| Lumens | 776 lm |
| Efficacy | 83.4 |
| Color Accuracy | 93 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.08A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 9.3W |

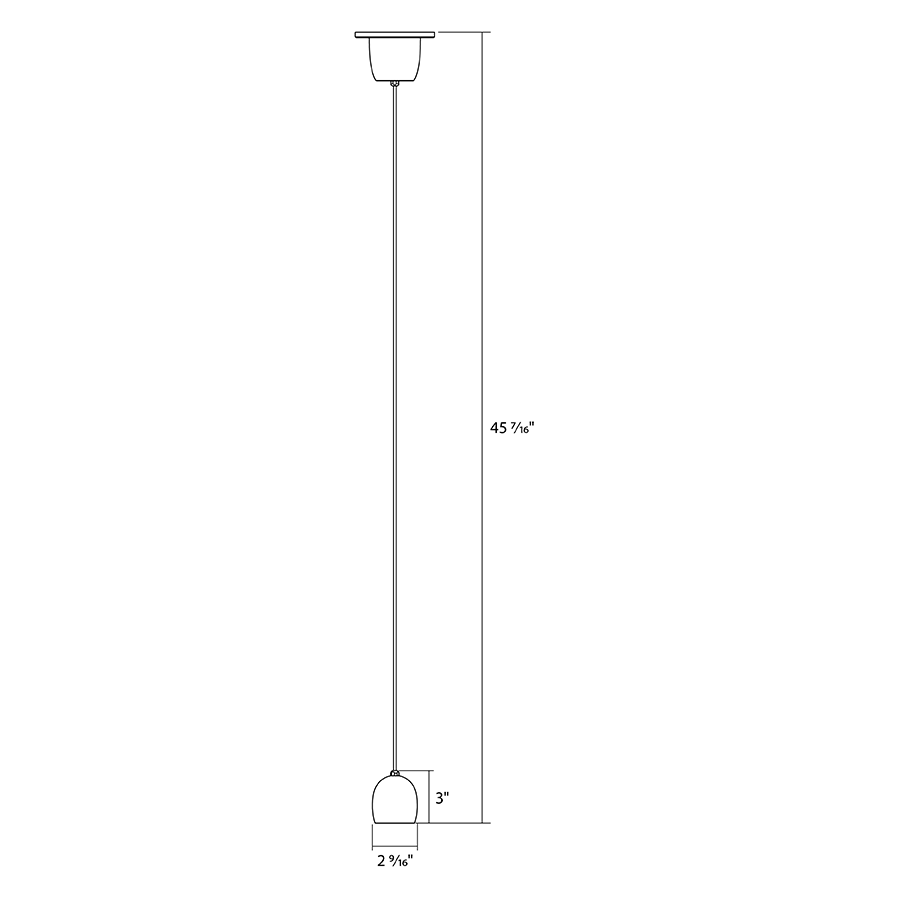

Dimensions
Weight: 1.1 lbs
Technical Specifications
Compliance
UL Listed
Suitable for dry locations
IP Rating
IP20
LED Characteristics
LEDs
Long-life, high-efficacy, COB (Chip on Board) LEDs
Color Temperature
3000K
Electrical
Driver
Constant Current, Class 2, 120V, 60 Hz, 120V: 0.10A
Dimming Driver
120V TRIAC Dimmers
Aux Power Supply
No
Dim to Off
No
Surge Protection
Ring Wave L-N:2.5 kV, LN-PE 2.5 kV
Emergency Characteristics
Cold Weather Starting w/Battery Backup
The minimum starting temperature is -4°F (-20°C)
Construction
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Aluminum
Reflector
Polycarbonate
Finish
Formulated for high durability and long-lasting color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Mounting
Pendant Mount
Optical
Optics
36°
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
