Integrated/embedded networked lighting control, luminaire-level lighting control. Fixture, Zone, and plug-load control from one powerful device. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols. Offers the capability to set the maximum light output to a less-than-maximum state of an individual luminaire at the time of installation or commissioning. The High-End trim functionality is field reconfigurable via the Lightcloud mesh network communication protocols. The Lightcloud controller can be attached to the fixture, junction box, or electrical panel.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com

Suitable for damp locations with cord and hook. Suitable for wet locations with 3/4" pendant stem. Covered ceiling mount only.

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Three multi-chip, 26W high-output, long-life LEDs

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377.2011.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

11.63% at 120V, 9.76% at 277V

99.1% at 120V, 93.5% at 277V

Constant Current, 720mA, Class 2 with 6kV surge protection, 100-277VAC, 50/60 Hz

AISLED will operate from -40°C (-40°F) to 40°C (104°F)

Superior thermal management with external air-flow fins

Precision die-cast aluminum housing and door frame with 3-foot 600V power cord

Specular vacuum metallized polycarbonate. AISLED78 reflector provides superior rectangular distribution pattern specifically designed for aisle lighting.

High-temperature silicone

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Heavy-duty 3/4" NPS hook and 3 foot safety chain

25 ft

The design of the AISLED™ is protected by patents pending in US, Canada, China, Taiwan and Mexico

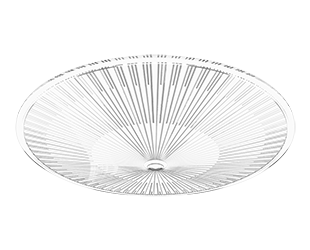

Available accessories include protective polyshield and wire guards, replacement lens and doorframe, and an occupancy sensor. Click here to see all accessories.

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
