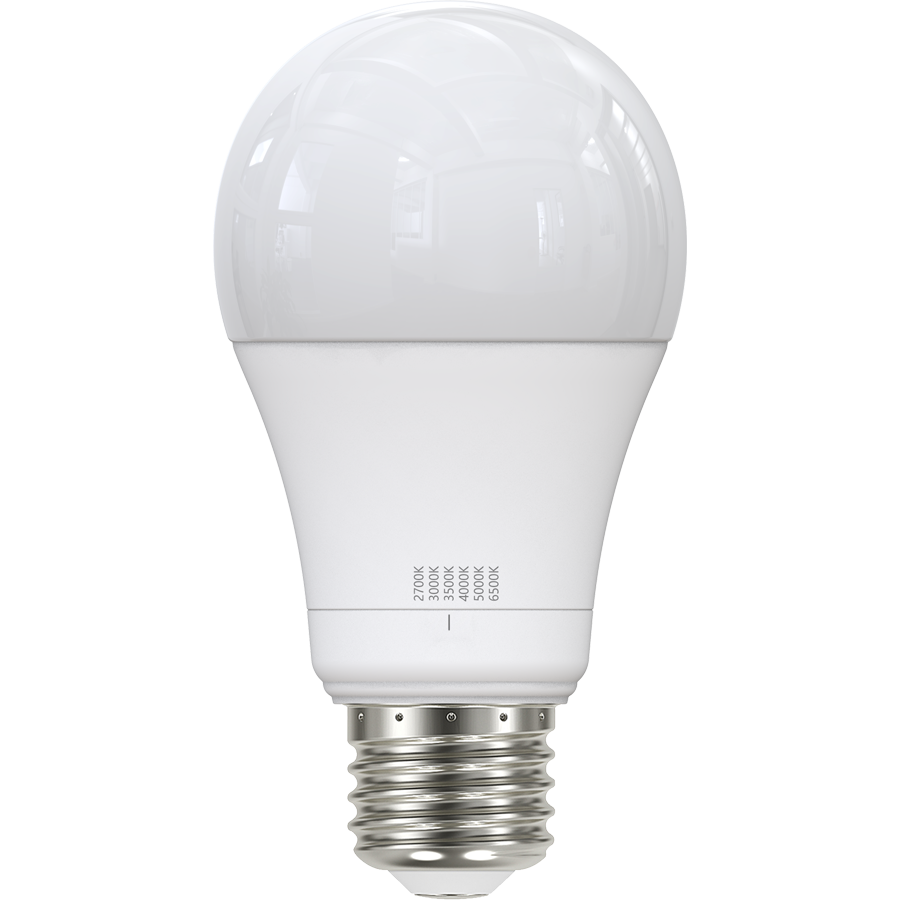

A19-9.5-E26-6CCT-D2D
A19-9.5-E26-6CCT-D2D
- Selectable color temp 2700/3000/3500/4000/5000/6500K
- Energy-efficient replacement for incandescent and halogen lamps
- Integrated dusk-to-dawn photocell for easy automation
- Longer LED lifespan minimizes replacement and maintenance costs
- TRIAC/ELV dimmable down to 10%, see Dimmer Compatibility List
Performance
| Watts | 9W |
| Color Temp | 2700/3000/3500/4000/5000/6500K |
| Lumens | 800 lm |
| Efficacy | 84 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 25,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 9.5W |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
A-Line, Dusk-to-Dawn
Description
A-line bulbs with integrated dusk-to-dawn photocell for simple automations.
Wattage Equivalency
60W Incandescent
Input Wattage
9.5W
Lumens (Nominal)
800lm
Efficacy
84lm/W
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Electrical
Power Factor
0.7
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Emergency Operation
Not for emergency use.
Sensor Settings
Photocell
Integrated dusk-to-dawn photocell
LED Characteristics
Beam Angle
230°
Color Temperature
Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000/6500K
Field adjustable via dip switch 2700/3000/3500/4000/5000/6500K
Color Tuning
No
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 no greater than 0
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
E26 Edison
Construction
Shape
A19
Finish
White
Endcap Material
Corrosion-resistant aluminum endcaps
Enclosure Material
Shatter-resistant polycarbonate housing
Lens Finish
Frosted
Compliance
Listings
UL1993
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Certification Model Number
A19-9.5-E26-6CCT-D2D
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
