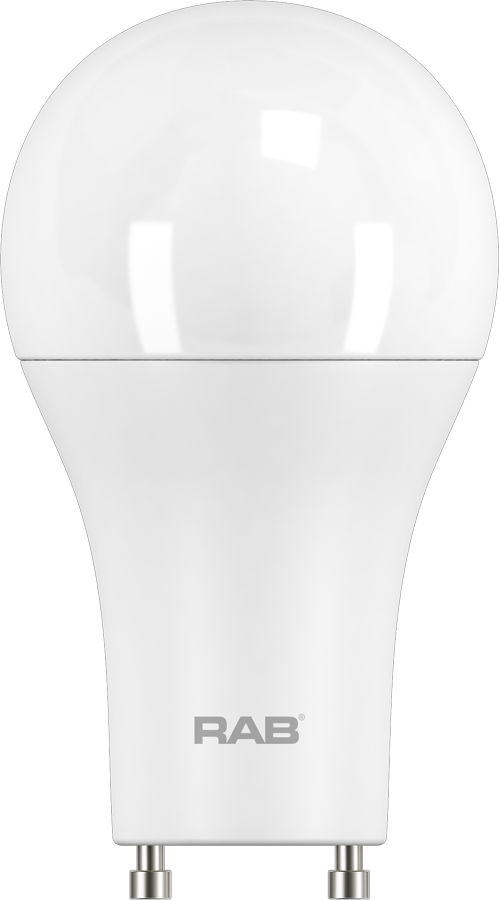

A19-16-GU24-830-DIM

Spec Sheet Photometrics Report Energy Star FCC Caution Spec Sheet

A19-16-GU24-830-DIM

Replacement for High-output Incandescent or lower wattage metal halide and high pressure sodium lamps

Rated for use in enclosed and open fixtures in dry or damp locations

Ideal for post top, bollards, and outdoor corridor lighting

Suitable for use in a base-up or base-down position

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp	3000K (Warm White)
Lumens	1,600 lm
Efficacy	103.2 lm/W
Color Accuracy	80 CRI
L70 Lifespan	15,000 Hours

Type
120V
208V
240V
277V
Input Watts	15.5W

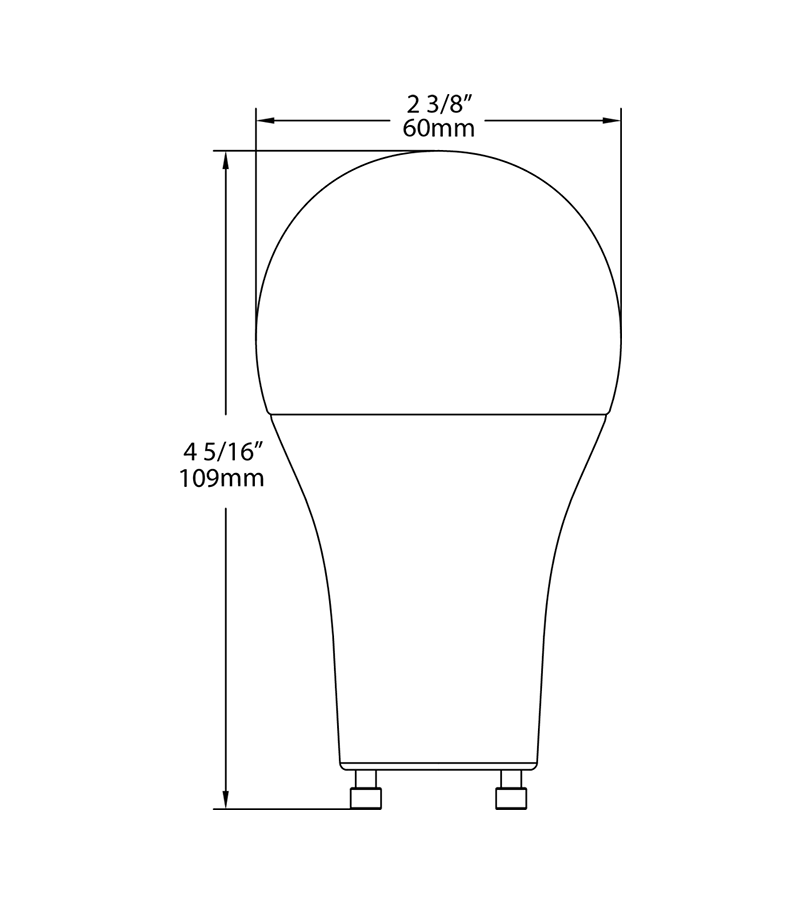

Dimensions

Weight: 0.3 lbs

Technical Specifications

Performance

Product Type

A-Line

Input Wattage

15.5W

Wattage Equivalency

100W Incandescent

Lumens

1,600lm

Efficacy

93lm/W

L70 Lifespan

15,000 Hours

Construction

Bulb Shape

A19

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

3000K Warm White

Color Accuracy (CRI)

80 CRI

Beam Angle

230°

Installation

Base Type

GU24

Electrical

Power Factor

≥0.7

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimmable

Yes, down to 10%

Input Voltage

120V

Operating Frequency

60 Hz

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

Energy Star Approved

This product is ENERGY STAR® Version 2.0 Certified

Energy Star ID

2329588

California Energy Commission (CEC) Status

Not Lawful for Sales in California
