• High performance LED light engine
  • Maintains 70% of initial lumens at 100,000-hours
  • Weatherproof high temperature silicone gaskets
  • Superior heat sinking with die cast aluminum housing and external fins
  • Replaces 400W MH
  • 100 up to 277 Volts
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 78W
Color Temp 5100K (Cool)
Lumens 9,788 lm
Efficacy 130.3 lm/W
Color Accuracy 71 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.66A
208V 0.41A
240V 0.35A
277V 0.30A
Input Watts 75.1W

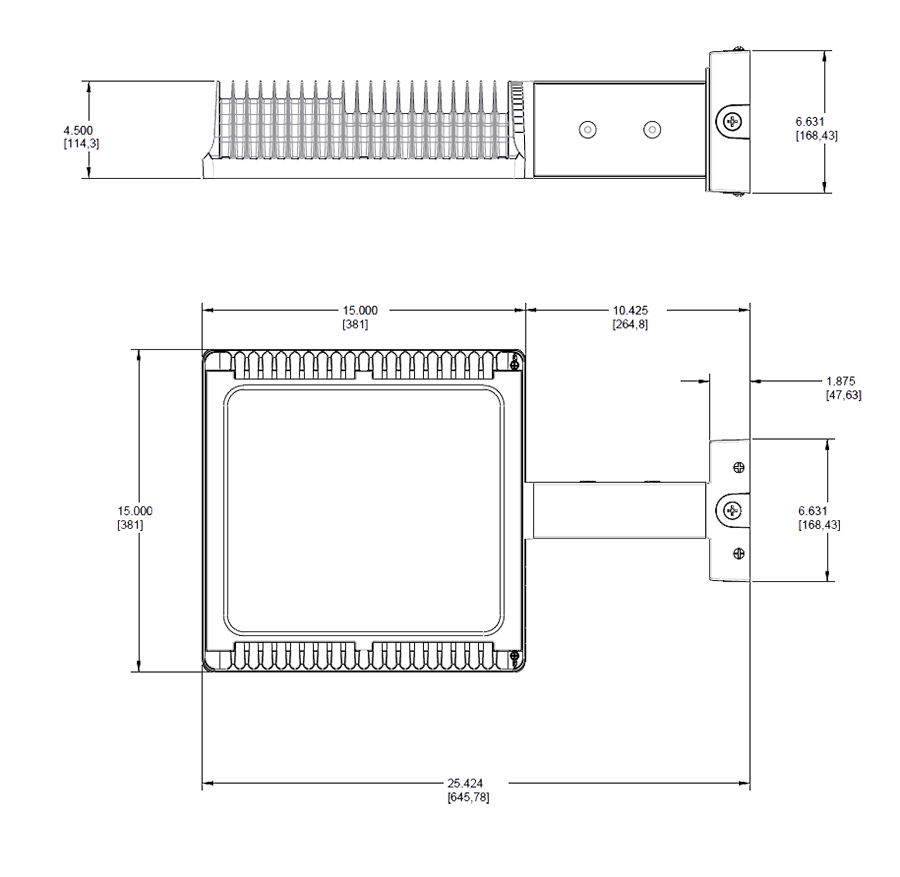

Dimensions
Link to Dimension Drawing

Weight: 31.6 lbs

BAC icon
Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 400W Metal Halide
Optical
Specification Grade Optics
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semiCircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
BUG Rating
B1 U0 G2
LED Characteristics
LEDs
Six (6) multi-chip, 13W, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Housing
Die-cast aluminum housing, lens frame and mounting arm
Reflector
Specular vacuum-metallized polycarbonate
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Driver
Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99%
THD
5.9% at 120V, 11.9% at 277V
Power Factor
99.5% at 120V, 92.8% at 277V
Surge Protection
6kV
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The WPLED design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
Replacement
Replaces 400W Metal Halide
FTC Country of Origin
This product was assembled in the USA by RAB using imported components
Buy American Act Compliance
This product complies with the Buy American Act
