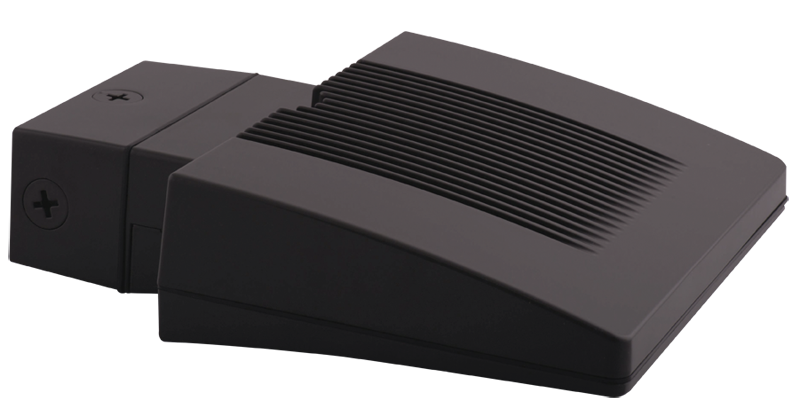

WPLED26DC
WPLED26DC
- Low voltage DC
- Ideal for solar applications
- Up to 85% more energy efficient
- No energy-loss from DC-AC inverter
- Enables off-grid, remote-area lighting
- 5-Year, No-Compromise Warranty
Performance
| Watts | 26W |
| Color Temp | 5000K (Cool) |
| Lumens | 2,473 lm |
| Efficacy | 89.9 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | DC to DC |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 27.5W |
Dimensions
Weight: 6.8 lbs
Technical Specifications
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 150W Metal Halide
LED Characteristics
LEDs
Multi-chip (2)13 watt, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Electrical Input Specifications
MaxW = 30W; Input Volts = 10-30 VDC; Operating Amps = 3.0 - 1.0A.
Construction
Cold Weather Starting
The minimum starting temperature is -30°C (-22°F)
Housing
Die-cast aluminum housing, lens frame and mounting arm
Reflector
Specular aluminum
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Junction box and Surface Plate
Compliance
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Other
Patents
The design of the LPACK is protected by US patents pending in US., Canada, China, Taiwan & Mexico.
Equipment
Solar panel, battery and controls by others
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
