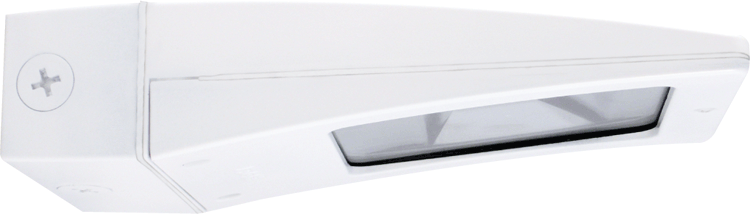

WPLED13DCW

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

WPLED13DCW

Low voltage DC

Ideal for solar applications

Up to 85% more energy efficient

No energy-loss from DC-AC inverter

Enables off-grid, remote-area lighting

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp	5000K (Cool)
Lumens	997 lm
Efficacy	65.2 lm/W
Color Accuracy	66 CRI
L70 Lifespan	100,000 Hours

Type	DC to DC
120V
208V
240V
277V
Input Watts	15.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.1 lbs

Technical Specifications

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 70W Metal Halide

Electrical

Electrical Input Specifications

MaxW = 10W; Input Volts = 10-30 VDC; Operating Amps = 1.3 - 0.4A.

Construction

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Housing

Die-cast aluminum housing, lens frame and mounting arm

Reflector

Specular aluminum

Gaskets

High-temperature silicone gaskets

Green Technology

Mercury and UV free. RoHS-compliant components.

Starting Amps / Operating Amps

12V DC/3.5A, 24V DC/3.5A.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Surface plate and Junction box

LED Characteristics

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

LEDs

Multi-chip 13 watt, high-output, long-life LEDs

Color Temperature

5000K

Compliance

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Other

Patents

The design of the LPACK is protected by US patents pending in US., Canada, China, Taiwan & Mexico.

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
