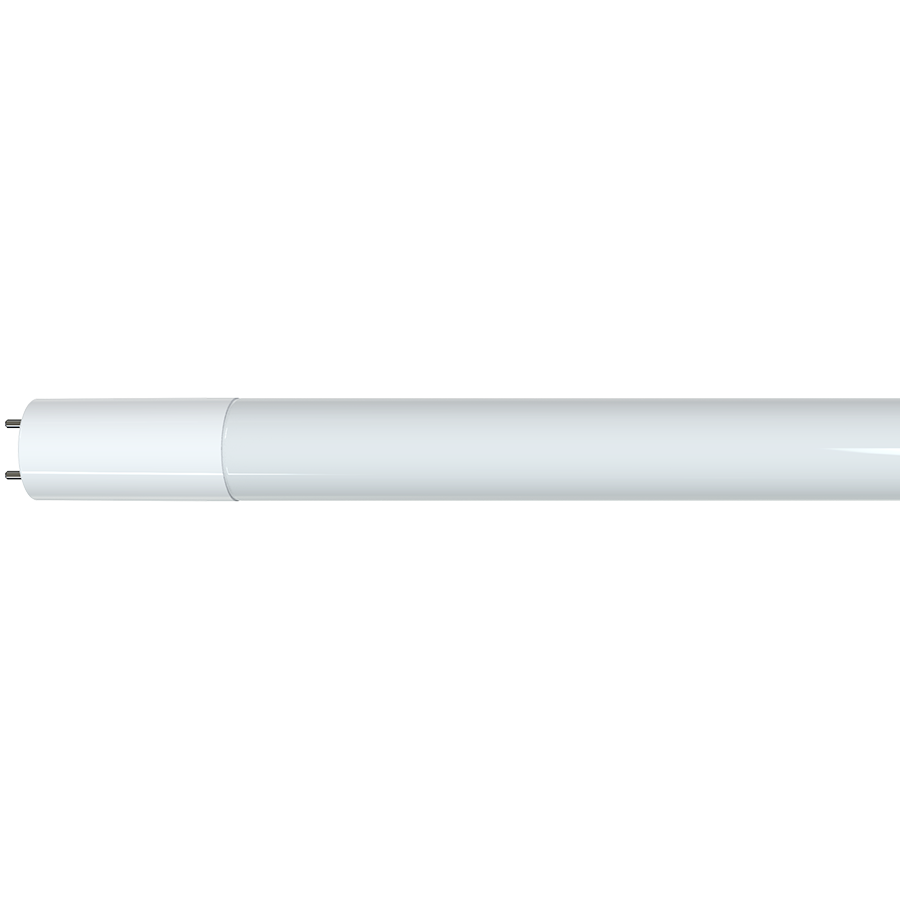

T8-9-24G-840-SD-BYP USA
T8-9-24G-840-SD-BYP USA
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Single ended and double ended wiring method
- Works with non-shunted sockets and shunted sockets.
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
- 50,000 hour Lifespan.
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Internal thermal fuse for added safety
Performance
| Watts | 9W |
| Color Temp | 4000K |
| Lumens | 1,150 lm |
| Efficacy | 127.8 |
| Color Accuracy | 82 CRI |
| L70 Lifespan |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | 20% |
Dimensions
Weight: 0.2 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
9W
Lumens
1,150lm
Efficacy
127.8lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
LED Characteristics
Color Accuracy (CRI)
82 CRI
Beam Angle
210°
Color Temperature
4000K
Construction
Material
Glass
Shape
T8
Nominal Length
2 ft
Installation
Base Type
G13
Electrical
Power Factor
>0.9
Input Voltage
120-277V
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Compliance
Enclosed Fixtures
Suitable for use in enclosed fixtures
UL Listed
Suitable for damp locations
UL Recognized
Yes
UL Classified
Yes
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
Certification Model Number
T10263(T8-9-24G-840-SD-BYP USA)
