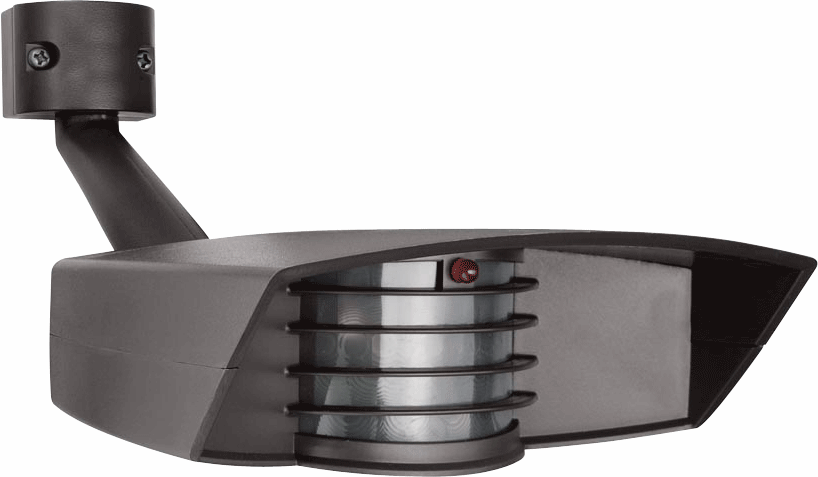

STL110
STL110
- Temperature compensation
- Radio frequency immunity
- 6000 volt surge protection
- LED detection & "on guard" indicator
- Color matched vandal resistant lens and grill
- Protected manual override with auto reset
- Can be wired in parallel
Dimensions
Weight: 0.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Power Consumption
1W
Surge Protection
Withstands up to 6000 volts
Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
RF Immunity
Circuits fully shielded for maximum radio frequency immunity
Voltage
120V AC 60 Hertz
Switching Capacity
1000W incandescent @ 120 volts, 8 amps
Sensor Settings
Time Adjustment
5 seconds to 12 minutes
Wide Sensitivity Control
Adjustable from 100% to 30%
Advanced Detection Logic
Minimizes false triggers
Photoelectric Control
Deactivates lights during daylight.
Detection
Angle of view = 110°
Recommended Mounting Height = 10'-0"
Maximum Recommended Look-Out Zone = 50'-0"
Recommended Mounting Height = 10'-0"
Maximum Recommended Look-Out Zone = 50'-0"
Construction
Temperature Compensation
Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
Horizontal Lock, No-tool Joints
Keeps sensing pattern level for fast, error-free installation
Floodlights
Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers.
LED Characteristics
LED Detection Indicator
Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence
Color Matched Lens
Dark lens with bronze units, white lens with white units
Other
Warranty
10-year sensor warranty
