R34-6B

Spec Sheet IES File Dimmer Compatibility LM79 Instructions Family Spec Sheet Spec Sheet EZ Layout

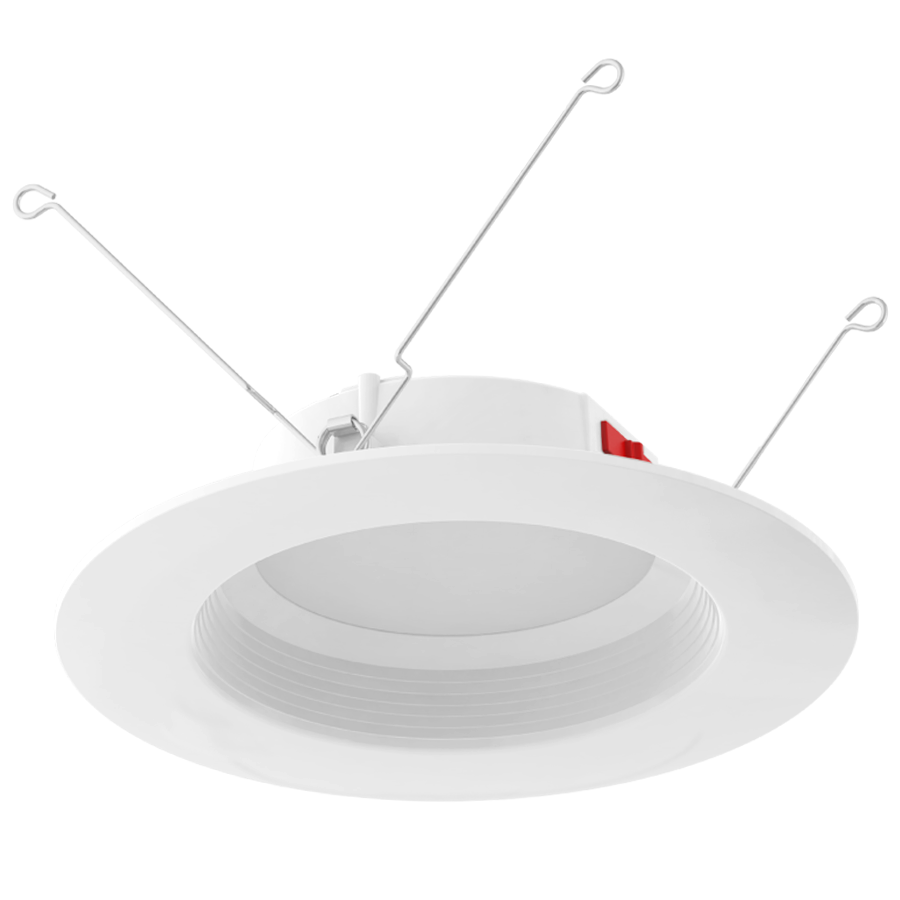

R34-6B

4" & 5/6" Recessed LED trims are compatible with most recessed housings

5 selectable CCTs 2700/3000/3500/4000/5000K

Compatible with most standard recessed housings

E26 Edison base adapter included

Anti-UV plastic extends the life of the housing

View Technical Specs

View Price & Availability

Performance

Watts	10W
Color Temp	2700/3000/3500/4000/5000K
Lumens	900 lm
Efficacy	90
Color Accuracy	90 CRI
L70 Lifespan

Type	Constant Current
120V	0.10A
208V
240V
277V
Input Watts	10W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Recessed Retrofit

Description

Available in 4" and 6" models with 5 field-adjustable color temperatures. Offered with smooth or baffle trims. Ideal for applications with tighter budgets.

Wattage Equivalency

75W Incandescent

Input Wattage

10W

Lumens (Nominal)

900lm

Efficacy

90lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Driver

Constant Current 120V 60 Hz; 120V: 100mA

Electrical

THD

≤100%

Power Factor

>0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Operating Temperature

-13°F to 104°F (-25°C to 40°C)

Flicker

≤30%

Emergency Operation

Not for use in emergency applications

LED Characteristics

Beam Angle

90°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Tuning

Color Accuracy (CRI)

≥90

Natural Spectrum

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Requires recessed housing. Compatible on most standard 5" or 6" housings

Base Type

E26 Edison adapter included

Installation Assembly

Fully captured V-springs

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Injection molded plastic construction is impact-resistent and non-corrosive. Non-conductive construction meets most local dead-front code requirements.

Trim Style

Baffle

Lens Finish

Frosted

Lens

Smooth flat profile polycarbonate lens diffuser

Compliance

Listings

UL Classified

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Depends on recessed housing used

Air Tight

Energy Star Approved

This product is ENERGY STAR® Version 2.2 Certified

DLC Listed

Certification Model Number

DLR0144(R34-6B)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

DLTRIM/R34-6-[B][BN][BRZ]
6" Round color trim, smooth

DLTRIM/R6RS-[BN][BRZ][B]
6" Round color trim, smooth

DLTRIM/R6RB-[BN][BRZ][B]
6" Round color trim, baffle

SNDCANIC6R
6" Shallow new construction can housing

NDCANIC6R/E26
6" New construction can housing

FRCANIC6R[/E26]
6" Fire rated new construction can housing

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
