LCLC/K
LCLC/K
- Wireless switching, 0-10V dimming, and power monitoring with a smaller footprint for 3A applications
- Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD
- Small profile for concealed installations
- Cloud-based management - no software to install or maintain
- Connects to Lightcloud Gateway and other Lightcloud devices
- Connects via a secure, encrypted, and self-healing 2.4 GHz wireless mesh network
- Repeater Mode to extend range of wireless mesh network
- If power to Controller is lost, notification is shown in the Lightcloud application
- If communication is lost, Controller can fall back to a customizable emergency state

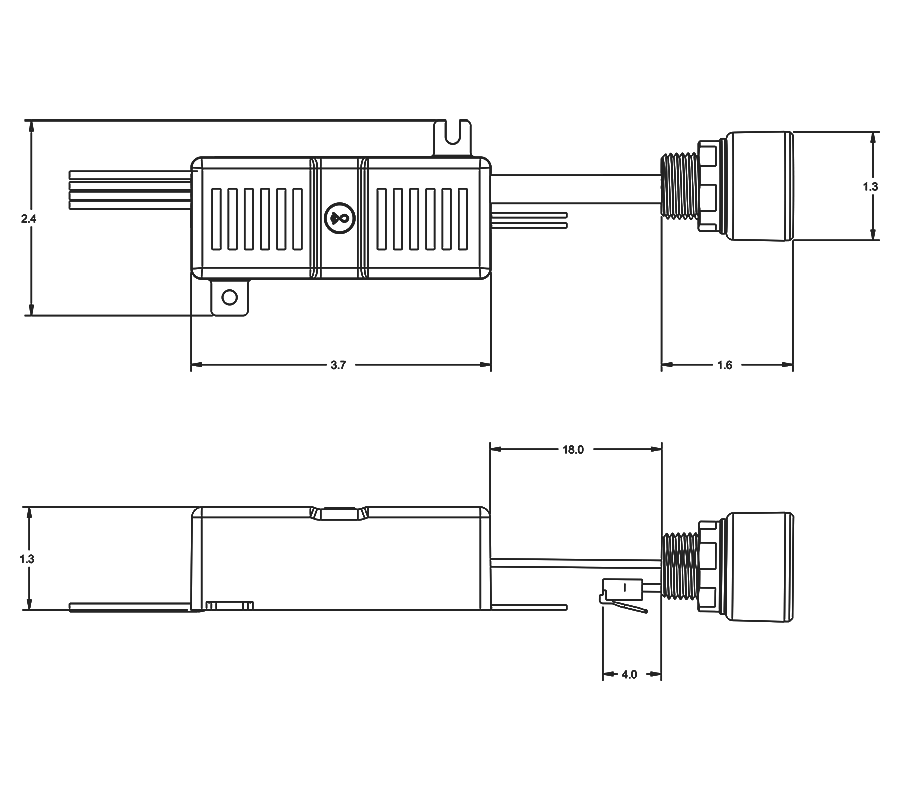

Dimensions
Weight: 0.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for indoor and outdoor use.
Plenum Rated
Plenum Rated
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Can dim as low as 1%. Actual dimming range is defined by driver.
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
120V through 277V
Frequencies
50/60 Hz
Electrical Ratings
<0.6W(Standby)-1W(Active)
Load Switching Capacity
LED, CFL, Tungsten 120/277VAC 500W
Magnetic 120VAC 264W, 277VAC 500VA
Resistive/Inductive 120VAC 500W
Magnetic 120VAC 264W, 277VAC 500VA
Resistive/Inductive 120VAC 500W
Construction
Operating Temperature Range
-40°C to 50°C
Storage Temperature Range
-40°C to 80°C
Maximum Relative Humidity
85%
Wire Gauge
4x6 in 18AWG High-voltage pigtails, stripped
2x12 in 22AWG Low-voltage pigtails, 300V insulation, stripped
2x12 in 22AWG Low-voltage pigtails, 300V insulation, stripped
Installation
Mounting
In a lighting fixture
Wireless Range
Line-of-Site
1000 ft
Obstructions
100 ft
Other
Warranty
10 Year full hardware warranty with 100% repair or replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
