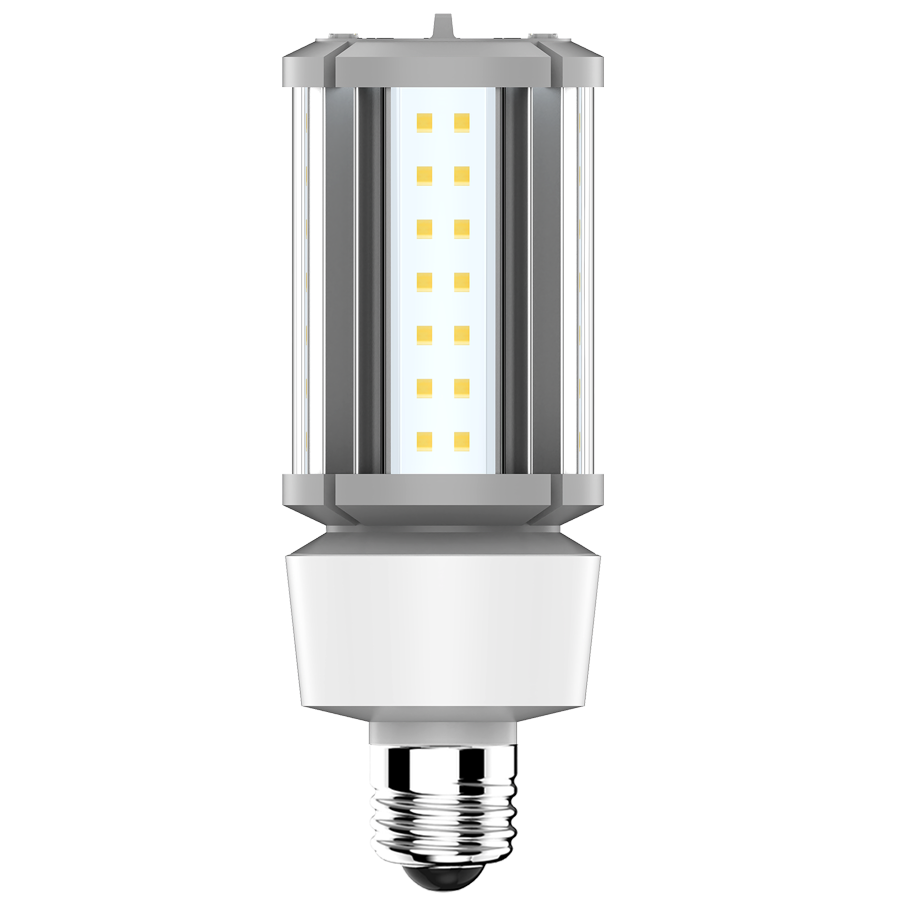

HIDFA-18S-E26-850-BYP

Spec Sheet Instructions FCC Caution Spec Sheet

Replaces traditional metal halide or high pressure sodium HID lamp

Adjustable wattage and CCT allows for in-field customization

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Rated for use in enclosed fixtures in dry or damp locations

4kV surge protection built in

50,000-Hour lifespan

Environmentally friendly, no mercury used

UL Listed, DLC Listed (select models)

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	6W
Color Temp	5000K
Lumens	870/1740/2610 lm
Efficacy	145
Color Accuracy
L70 Lifespan	50,000 Hours

Input Voltage	100-277V
Power Factor	>0.9
Flicker	<30%
THDi	<20%

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

HID Replacement

Input Wattage

6W/12W/18W

Lumens

870/1740/2,610lm

Efficacy

145lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

75W Metal Halide or High Pressure Sodium

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

5000K

Color Accuracy (CRI)

>80 CRI

Beam Angle

360°

Electrical

THD

<20%

Power Factor

>0.9

Dimmable

Yes

Flicker

<30%

Operating Temperature

-30°C to 60°C

Input Voltage

100-277V

Operating Frequency

50/60Hz

Construction

Shape

Post Top

Endcap Material

Metal

Enclosure Material

Polycarbonate

Installation

Base Type

E26 Edison

Installation Orientation

Vertical and Horizontal

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
