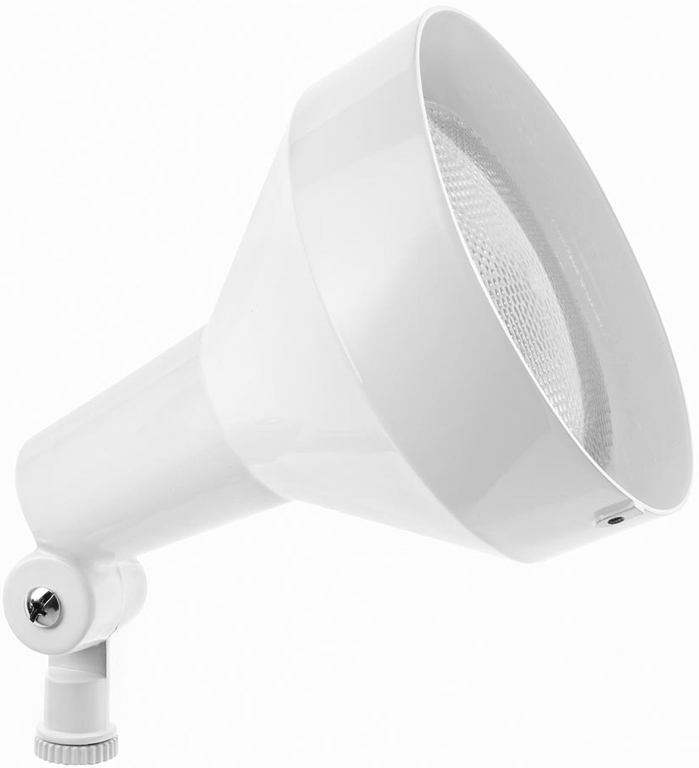

H101W
H101W
- Lamp recessed 1" from lip for side glare reduction
- Set screw for hood, grill or visor attachment
- Large Silicone rubber gasket provides weatherproof protection around the lamp and socket
- Caution: When using as an uplight in outdoor applications a Hood or a Visor must be used
- HV1 Visor with integral guard and glass lens for maximum glare reduction and lamp protection
- HG1 Guard: Protects lamp from damage and vandalism
- HH1 Hood with glass lens reduces glare and protects lamp from water and impact damage
Performance
| Watts | 150W |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |
Dimensions
Weight: 1.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground. When using as an uplight in outdoor applications, a Hood or a Visor must be used.
Electrical
Sockets
Porcelain with all copper current carrying components
Construction
Swivels
Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts.
Housings
Die-cast aluminum with powder coat finish
Gaskets
High-temperature silicone rubber extends around both socket and lamp
Optical
Lamps

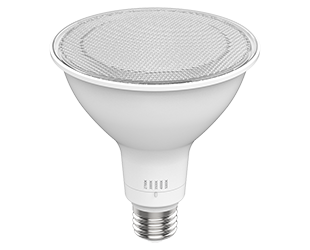

Medium base Par-38 lamps up to 150W. Halogen lamps give brighter light and choice of beam spreads.
Other
Note
H101 is not compatible with MP17 or MP19
