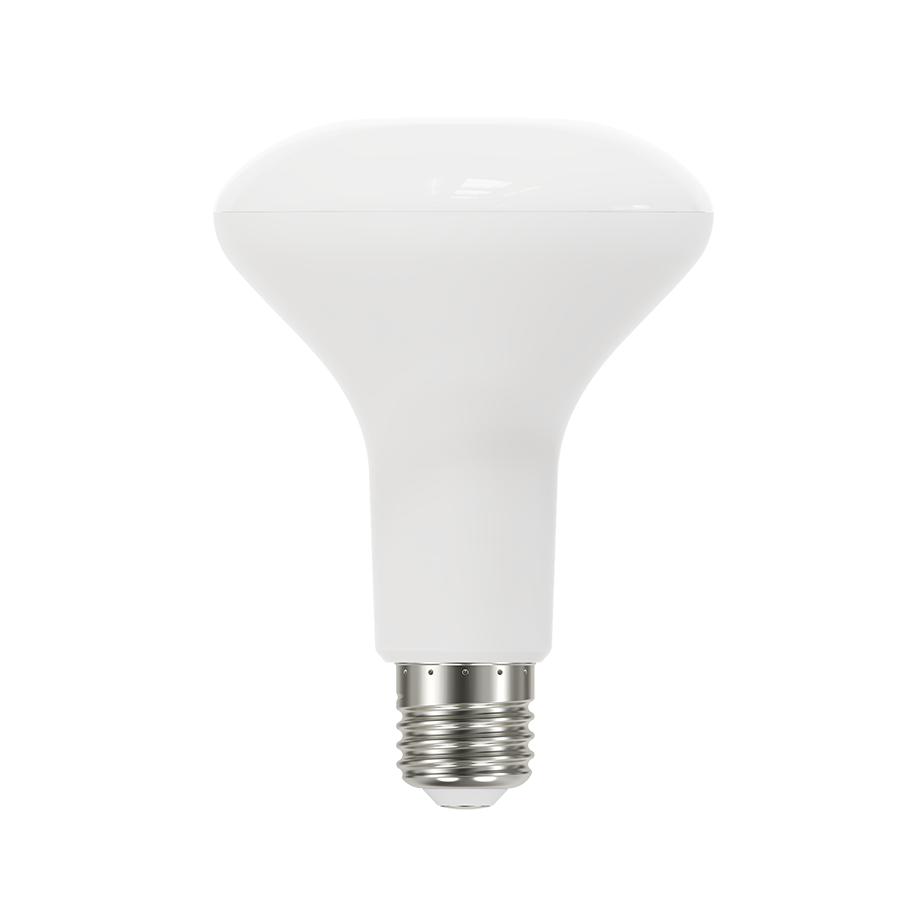

BR30-8.5-840-DIM ECO 6PK
BR30-8.5-840-DIM ECO 6PK
- Energy efficient replacement for incandescent and halogen reflector lamps
- Constructed from durable plastic which lowers risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Frosted lens produces smooth diffuse light
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- ENERGY STAR Compliant
- Dimmable with common dimmer types (see Dimmer Compatibility List)
Performance
| Watts | 8W |
| Color Temp | 4000K |
| Lumens | 680 lm |
| Efficacy | 80 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 15,000 Hours |
| Input Voltage | 120V |
| Power Factor | 0.7 |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 1.5 lbs
Technical Specifications
Performance
Product Type
Reflector, Contractor Pack
Description
Economical contractor grade reflectors in convenient pack sizes that eliminate excess waste at the right price.
Wattage Equivalency
65W Halogen
Input Wattage
8.5W
Lumens (Nominal)
680lm
Efficacy
80lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 60 Hz; 120V: 111mA
Power Factor
0.7
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
>80 CRI
R9 Value
High color performance with R9 no greater than 0
Installation
Base Type
E26 Edison
Construction
Shape
BR30
Finish
White
Endcap Material
Aluminum
Enclosure Material
Plastic
Lens Finish
Frosted
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Energy Star ID
2386749
Certification Model Number
BR30-8.5-850-DIM ECO 6PK
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Not Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
