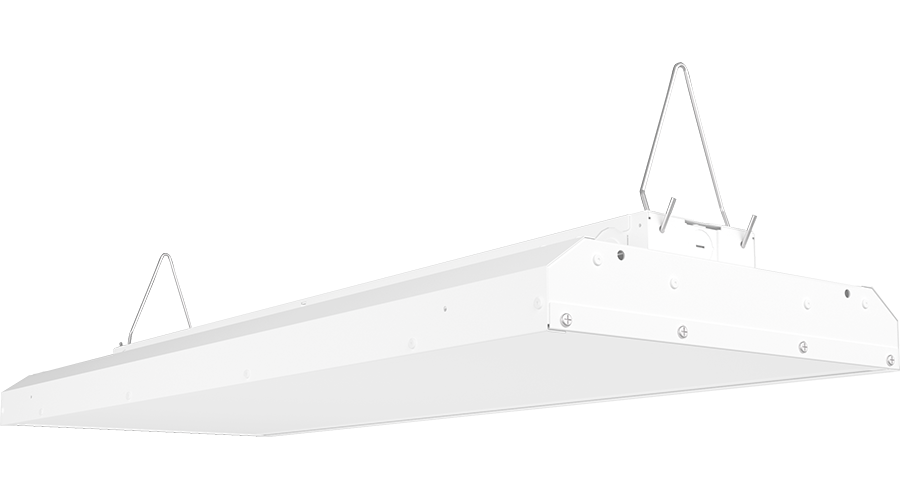

ARBAY3-275
ARBAY3-275
- High efficiency. Low price.
- Ideal for industrial warehouse spaces
- 100,000 hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 275W |
| Color Temp | 5000K (Cool) |
| Lumens | 39,685 lm |
| Efficacy | 143 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.25A |
| 208V | 1.30A |
| 240V | 1.12A |
| 277V | 1.00A |
| Input Watts | 277.6W |

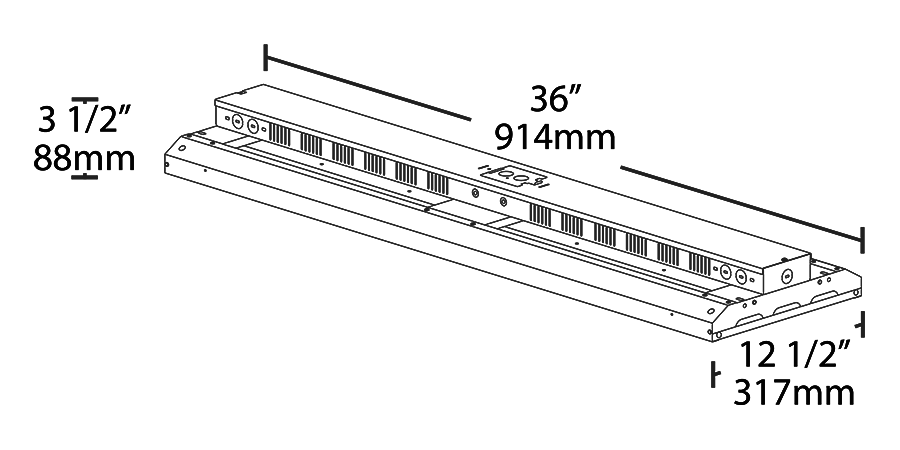

Dimensions
Weight: 18.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P6Q8WDOE
DLC Product Code: P6Q8WDOE
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Construction
Operating Temperature
-4°F(-20°C) to 122°F ( 50°C)
Electrical
Driver
Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 2.25A, 208V: 1.30A, 240V: 1.12A, 277V: 1.0A
THD
3.73% at 120V, 7.29% at 277V
Power Factor
99.9% at 120V, 95.1% at 277V
